As we promised earlier, now we start publishing the results of some investigations AidAim Software carried out for DB engines presented on the market.
Here are the speed tests for some products of this kind.

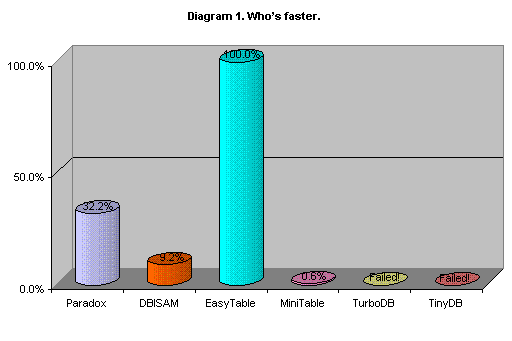

Diagram 1 presents the results of all existing speed tests for the products mentioned above.

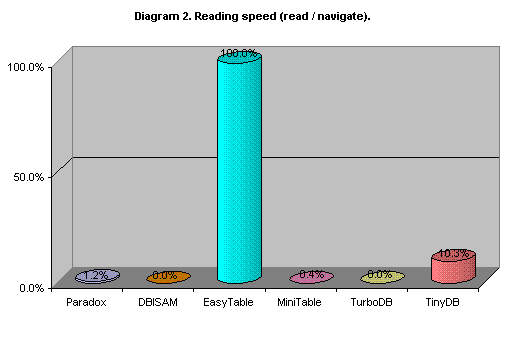

Diagram 2 presents reading speed test results, and

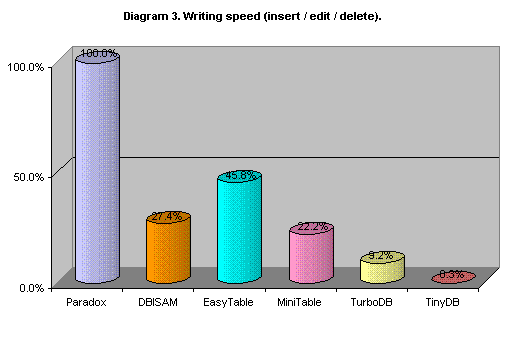

Diagram 3 presents writing tests results.

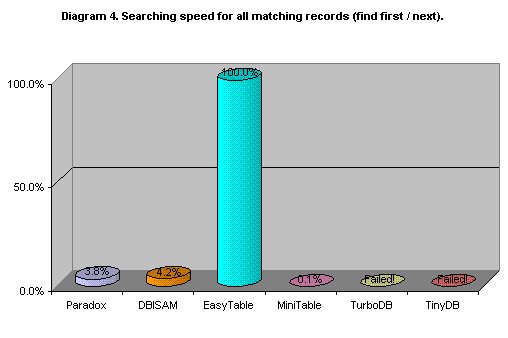

Comparison of all these products by searching speed
when searching for all the records matching the specified search criteria, is presented at
Diagram 4 (find first and find next results are compared for equality on 5 conditions.
They are: Integer, Sting, Date/Time, Integer & String & DateTime, String with partial compare).

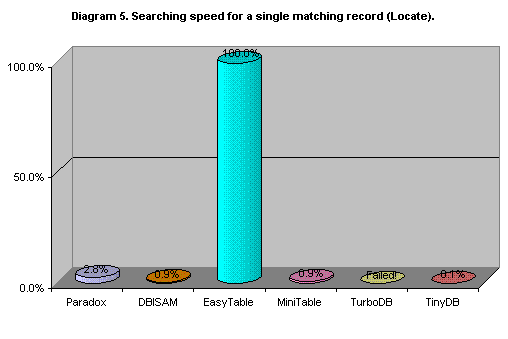

Diagram 5 shows searching speed
when searching for the single record matching the search criteria of the 'equality' type
(Locate by the same five conditions).

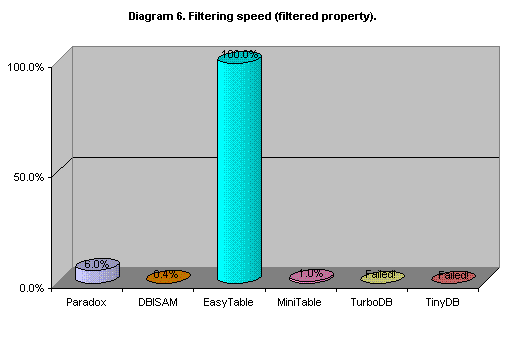

Diagram 6 presents the result of comparison of the same DB engines by filtering speed (the same five conditions).

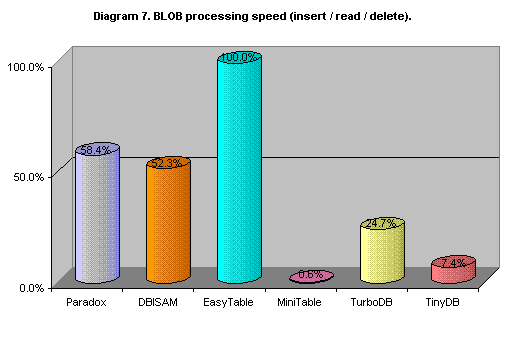

Diagram 7 shows the results of comparison by BLOB fields processing speed.







Testing had been executed on a table containing 10 000 records and including Integer/DateTime/String fields
filled with data obtained by means of the standard program random-number generator, Randomize.
For testing search engines after generating data, a random sequence of 1000 records is chosen,
which is 10% of the whole number of records. This sequence of different records is then replaced
with another sequence consisting of the same record repeatedly duplicated.
This operation is performed for executing FindNext and filtering search.

Let us now describe the tests themselves. The very first group of tests includes basic operations
with tables, such as adding records, updating records, deleting records, reading table to memory
(it is used for emulating direct operating with tables, without using DBGrid, DBNavigator and their analogues),
as well as moving the cursor to a defined position. TTable uses the following methods for implementation of
these operations: Insert, Edit, Post, Delete, First, Next, MoveBy.
All the data is prepared in advance and is stored in dynamic arrays ids, ints, dates.
Time measurement is the same for all the tests and is realized by means of Win API function GetTickCount,
for this function measures time in milliseconds in contrast to Now function.
Execution times for all such blocks are summed and then averaged out by test passes number
(simple average of a single pass time is calculated). We pass through each test 10 times.
The measurements results are given in Table 1.
Table 1. Tests passing time, sec.
DB Engine
|
Paradox 7.0
|
DBISAM
|
EasyTable
|
MiniTable
|
TurboDB
|
TinyDB
|
Version
|
BDE 5.1
|
2.09
|
2.0
|
5.0
|
3.2
|
2.4
|
Release date
|
06/21/99
|
05/27/01
|
06/01/01
|
02/06/00
|
04/31/01
|
05/07/01
|
Autor
|
Borland
|
Elevate Software
|
AidAim
Software
|
Unley Software
|
dataWeb GmbH
|
DayDream Software
|
Basic I/O operations
|
61.368
|
2,035.634
|
21.810
|
211.564
|
3,452.947
|
3,376.711
|
Reading
|
51.679
|
2,000.326
|
0.643
|
167.935
|
3,347.995
|
6.268
|
Read records
|
1.034
|
0.811
|
0.638
|
0.685
|
1.100
|
3.205
|
Navigate records
|
50.645
|
1,999.515
|
0.005
|
167.250
|
3,346.895
|
3.063
|
Writing
|
9.689
|
35.308
|
21.167
|
43.629
|
104.952
|
3,370.443
|
Insert records
|
4.163
|
13.811
|
6.221
|
14.611
|
50.434
|
1,173.703
|
Edit records
|
2.339
|
5.996
|
4.082
|
5.593
|
9.352
|
2,130.426
|
Delete records
|
3.187
|
15.501
|
10.864
|
23.425
|
45.166
|
66.314
|
Searching by Find
|
400.136
|
295.770
|
12.406
|
10,518.236
|
Failed!
|
Failed!
|
FindFirst integer
|
5.915
|
39.513
|
1.817
|
764.795
|
Error
|
510.567
|
FindFirst string
|
102.944
|
47.414
|
2.190
|
1,042.525
|
Error
|
899.207
|
FindFirst datetime
|
6.993
|
48.052
|
2.114
|
820.494
|
Error
|
Error
|
FindFirst all fields
|
108.660
|
48.989
|
4.225
|
1,636.344
|
Error
|
Error
|
FindFirst substring
|
101.860
|
48.410
|
1.920
|
990.140
|
Error
|
928.571
|
|
0.000
|
0.000
|
0.000
|
0.000
|
Error
|
0.000
|
FindNext integer
|
0.080
|
3.887
|
0.015
|
759.315
|
Error
|
1.566
|
FindNext string
|
0.585
|
16.972
|
0.035
|
1,057.160
|
Error
|
2.028
|
FindNext datetime
|
0.120
|
6.014
|
0.015
|
819.205
|
Error
|
Error
|
FindNext all fields
|
0.410
|
19.845
|
0.040
|
1,650.833
|
Error
|
Error
|
FindNext substring
|
0.295
|
16.674
|
0.035
|
977.425
|
Error
|
2.196
|
Searching by Locate
|
44.715
|
141.446
|
1.238
|
135.841
|
Failed!
|
1,807.834
|
Locate integer
|
5.145
|
40.434
|
0.130
|
0.608
|
1,393.639
|
5.099
|
Locate string
|
0.504
|
2.047
|
0.160
|
0.654
|
Error
|
5.974
|
Locate datetime
|
6.851
|
46.998
|
0.180
|
133.220
|
1,478.611
|
5.276
|
Locate all fields
|
31.700
|
49.857
|
0.598
|
0.696
|
Error
|
1,782.780
|
Locate substring
|
0.515
|
2.110
|
0.170
|
0.663
|
Error
|
8.705
|
Filtering
|
1.080
|
14.793
|
0.065
|
6.215
|
Failed!
|
Failed!
|
Filter integer
|
0.080
|
2.950
|
0.005
|
0.945
|
2.239
|
1.653
|
Filter string
|
0.130
|
2.958
|
0.020
|
1.265
|
Error
|
2.124
|
Filter date
|
0.070
|
2.965
|
0.000
|
1.025
|
Error
|
Error
|
Filter all fields
|
0.530
|
3.005
|
0.015
|
1.860
|
Error
|
Error
|
Filter substring
|
0.270
|
2.915
|
0.025
|
1.120
|
Error
|
1.835
|
BLOB processing
|
400.136
|
446.397
|
233.674
|
36,615.899
|
946.996
|
3,159.677
|
Insert BLOB Data��
|
216.186
|
110.874
|
111.218
|
256.757
|
374.595
|
2,520.170
|
Read BLOB Data ��
|
96.425
|
104.195
|
103.122
|
118.016
|
190.057
|
60.420
|
Delete BLOB Data
|
87.525
|
231.328
|
19.334
|
36,241.126
|
382.344
|
579.087
|
All tests
|
835.161
|
2,934.040
|
269.193
|
47,487.755
|
Failed!
|
Failed!
|
Well, let us now review it all.

1. EasyTable by AidAim Software is an undisputable leader in searching and
I/O operations speed.

2. Paradox + BDE (native driver, supplied with the distribution package) by Borland
Software Corporation shows quite good results in speed. This combination
even exceeds a bit EasyTable, our tests leader, in data writing speed; but
even if writing operations sort with reading operations as 1:1 (as for
real applications, this ratio may be much greater), EasyTable still wins
over Paradox in I/O operations speed (it is almost 3 times faster). Here we
must say, that this is the only system of all the considered, which uses
BDE; this feature sometimes becomes inconvenient due to the large size of
the code compiled. All the other tested systems are 5 to 10 times more
compact.

3. Pity, but such a well-known and widely advertised in the Internet as a
high-speed DB engine system as DBISAM did not show high results in speed and
loses before the leader in the sum of all the tests over 10 times.
In the input-output time it remains behind the EasyTable
almost 100 times!
Moreover, DBISAM is equipped with a very slow searching engine. In the Find
category EasyTable, our leader, is over 20 times faster than DBISAM. We
should note that Find next is executed especially slowly; for example, in
complex inquiry (Find next all fields) EasyTable is almost 500 (!!!) times
faster. DBISAM is almost 100 times slower than Easy table in Locate and over
200 times -- in filtering.
Hence, to our opinion the testing results cited by DBISAM as a confirmation
of their high results in speed, are not quite correct, for the testing
principles are far from being perfect, as well as the way to produce the
result (I/O times are not measured; single operation time being measured is
comparable to the measurements precision itself; only special operations are
measured; the way of creating and filling in the database is not described),
the products
assortment for testing is very tendentious.

4. The slowest of all DB engines that passed our tests successfully is
MiniTable. EasyTable is 176 times faster than it is! It looks like this
product's perfection finally stopped over a year ago.

5. Obviously bad results shown by TurboDB became an unpleasant surprise.
In I/O operations EasyTable is over 150 times faster than TurboDB is.
Moreover, this DB engine appeared unable to pass our testing due to errors
that arose with testing searching (Locate) and filtering (due to bugs with
strings and dates). TurboDB doesn't have Find first / Find next features at
all. Even in those rare cases when we managed to measure its searching and
filtering characteristics, TurboDB proved to be the most slow system:
EasyTable is 10,000 (!!!) times faster in searching by Locate and almost 500
times faster in filtering. So, tests had really shown that TurboDB isn't
worse its "quick" name - let this trademark never mislead anyone else!

6. TinyDB also appeared unable to pass testings due to errors in testing
Find and filtering. Moreover, like TurboDB it showed very low speed as in
the I/O operations, so as in the searching engine testing, too.

7. We had also tested some other systems, but their results proved to be even
worse than those of this review's leaders; over this, we considered some of
those products worthless mentioning in this article due to some of their
features.

To sum up, we must say that EasyTable proved to be the fastest to date DB
engine. TurboDB and TinyDB are not recommended to use due to multiple errors
in their searching algorithms. Moreover, these two systems seem to be
absolutely hopeless
in achieving high performance results.

Note. When reviewing the summary productivity of the tested DB engines we
supposed that all the operations take the same part in the total system's
productivity; you'll never meet such a situation in real applications, of course.
Nevertheless, having received the above-mentioned results and having
analyzed the real frequency of using this or that operation in your
application on the example of a typical task, you may learn, which of the
systems listed above will be faster, and how much faster, for your
particular case. However, basing from the results given in the present
article, EasyTable by AidAim Software will probably become the fastest
system in your case, too.

We give
full source code of the testing program for each DB engine.
Due to some distinctions of functions realization in different programs,
we used different testing programs for any of the products being tested,
using the same measurement principles.
Any comer may carry out the same measurements and make sure in reliability of the results presented here.
You may also be free in testing the products presented here and change the measurements principles in order to obtain,
for example, the dependency of DB engine(s) operating speed on the number of records.
Furthermore, you may change any of the programs presented here in order to test any other product.
In any case, with any publishing of any investigations using the materials presented here
(including program(s) for measurements) or the measurement principles,
you must needs refer to AidAim Software as the author and the article itself.
